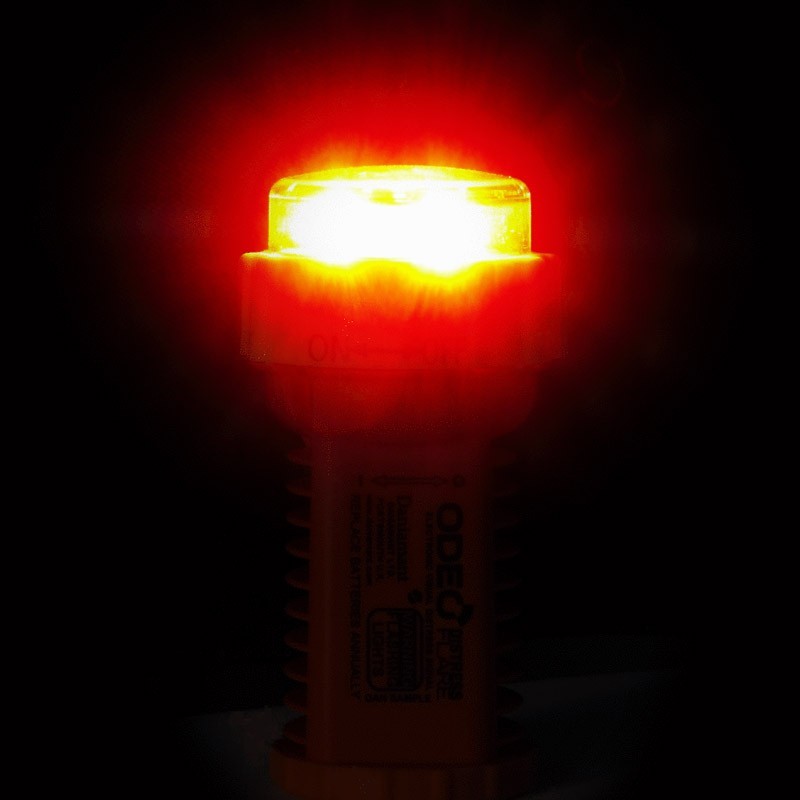

The LED hand flare, Odeo Distress Flare is a powerful means of luminous identification. Electronic visual distress signaling device, its light signal is visible at more than 3NM (+5Km) on the whole hemisphere with more than 8H of autonomy. The red light emits an SOS in Morse Code to give you the security of being spotted in a large area in a distress situation.
ODEO Distress Flare is the fourth generation of electronic visual distress signaling devices, its improved performance and compact size make this safety equipment an alternative to replace the pyrotechnic hand flares used as a means of light identification on board ships. New standards and regulations still being developed with regulatory bodies are based on the technological advances of the ODEO Distress Flare which you are now able to benefit from for your personal safety.
The ODEO Distress Flare is a luminous LED tracking device to be visually located in a distress situation. Its signal emits an internationally recognized morse code light SOS, it indicates that you need urgent help. ODEO Distress Flare offers great autonomy in a distress situation, the red color signal lights up at maximum power for more than 8 hours. Its flicker mimics that of a traditional pyrotechnic hand fire. The latter lights up for about 30 seconds before turning off.
Unlike pyrotechnic fires, electronic visual distress signaling poses no danger to its user, as it does not use explosives and does not produce a flame.
ODEO Distress Flare uses replaceable batteries, high performance alkaline or lithium batteries to power the powerful LED diodes that emit the visual SOS distress signal, covering a wide geographical area extending over several kilometres. The batteries are inserted into the heel of the device, the secure opening of the shutter prevents handling errors during use subject to stress or panic due to the distress situation.
The range of the ODEO Distress Flare electronic visual distress signal depends on the weather conditions of use, in all cases it is visible at more than 3 nautical miles, easily spotted from a helicopter at more than 6 nautical miles and can be located at 10 nautical miles. The signal visible to the naked eye is also optimized for detection with infrared night vision goggles used by the emergency services (use of IR LEDs). The infrared radiation is 830 nm with an intensity of 10mW/sr x 5. The coverage on the horizontal plane is on average 63 candelas and 35 candelas vertically.
The Morse SOS emitted by the ODEO Distress Flare electronic device is recognized as a distress signal in accordance with the international regulations for preventing collisions at sea (RIPAM), also called COLREGS.
Its small size and light weight make the ODEO Distress Flare an ideal device for personal safety. It measures 12.2 cm in height and 6.4 cm in width and its weight with lithium batteries is 150 grams.
The ODEO Distress Flare is waterproof to the IP68 standard and has also been submerged to 100 meters deep. It is also floating in an upright position; light signal out of the water autonomously.
The ODEO Distress Flare operates in a temperature range between -40° and +60° with Lithium batteries. The case is made of a thermoplastic polymer with good shock resistance.
The ODEO Distress Flare uses interchangeable batteries available in all supermarkets. It can be used with either 4 L91 Lithium batteries for better performance or 4 Alkaline batteries.
With Lithium batteries, the autonomy is more than 8 hours in full illumination and operates at temperatures between -40°C and +60°C.
With Alkaline batteries the autonomy is more than 3 hours in full illumination and operates at temperatures between -18°C and +55°C.
For marine use, it is recommended that the batteries be changed annually. It is also advisable to keep spare batteries for extended use and thus prolong the transmission of the distress signal.
ODEO Distress Flare is environmentally friendly safety equipment. By using the ODEO Distress Flare electronic visual distress signal, you do not emit any toxic pollutants into the environment. It does not contain any dangerous explosives.
Recycle your used batteries appropriately. The device comes with a 2 year warranty and if stored correctly it will give you many years of use.
Data sheet
Feature | Specification |
---|---|
Type of use | Outdoor Adventure, nautical activities, water and underwater activities. |
Height | 64 millimètres |
Width | 122 millimétres |
Weight | 150 grammes with Lithium batteries / 180 grammes with piles Alkaline batteries |
Composition of housing | Acrylonitrile butadiène styrène ou ABS est un polymère thermoplastique présentant une bonne tenue aux chocs |
Waterproofness and Submersibility | IP68 |
Buoyancy | Positive |
Impact resistance | yes (2 meters) |
Battery | Lithium iron disulphide cells (x4) (AA L91) or Alkaline cells (x4) (AA) |
Replacing the battery | Marine use battery change recommended every year. Lithium (for better performance) |
Activation | Manuel, par rotation de la bague d'activation |
Light source | LED (Diodes) |
Light beam range | Minimum 3 miles nautiques et 6 miles nautiques dans des conditions idéales |
Operating temperature | Lithium -40°C à +60°C / Alkaline -18°C à +55°C |
Tracking Flash | SOS Morse ( ---_ _ _ ---) |
Flash SOS | Red LED light (Diodes) |
Coverage | Plan horizontal: Maximum: 90 cd / Minimum: 35 cd / Moyenne: 63 cdFaisceau vertical: 35 cdAutres directions: env. 20 cd |
Standards | Signal de détresse SOS du règlement international pour prévenir les abordages en mer (RIPAM), aussi appelé COlREGS |
Warranty | 2 years |
Specific References
Feature | Specification |
---|---|
ean13 | 0713830573179 |
